Product Description:


The key facilities of the data center are power distribution and air conditioning systems, and the comprehensive test is the load test of key facilities. The IT equipment is gradually installed after the data center is delivered for use, that is, there is no it load in the data center during construction acceptance, so many problems of key facilities cannot be exposed. Therefore, false load arises at the historic moment. Simulate the actual operation and heating of IT equipment through dummy load to ensure the effective operation of data center power supply and company system (including UPS system), air conditioning fresh air system, lightning protection and grounding system, monitoring system and other systems, and timely find and solve problems through testing, so as to eliminate potential safety hazards.


Product importance:


Fake load verification test, as a comprehensive inspection and test before the new data center is put into operation, has been recognized and supported by more and more people in the industry. And as an indispensable key project link in the new data center project. The introduction of this link plays a very important role in the project, operation and data center life cycle management. It can eliminate hidden dangers in advance, establish operation and maintenance procedures and carry out operation drills. It is also the final guarantee for the overall project delivery quality. At this stage, the hidden dangers buried in design, construction and equipment can be rectified at the least cost, so as to avoid the systematic risk of the project.


Application fields:


Acceptance of the refrigeration system in the machine room, provision of acceptance report on the air flow environment in the machine room, verification of the design index of the machine room, and acceptance of the power system in the machine room



Product name

Data center high voltage load

model

WS-642000

                       The main technical indexes and parameters of the load box can be customized according to customer needs

Rated voltage

AC 10.5KV

Rated power

2000KW

Maximum current

110A

Minimum step

100KW

accuracy

≤1%F.S.

control mode

Manual

Programmable

Panel layout

power switch
Power regulating switch
Digital display instrument
Buzzer
Emergency stop switch

power switch
10 Inch Touch Screen
Local / remote transfer switch
Buzzer
Emergency stop switch
RS485 communication interface
Upper computer software

Communication protocol

NA

Modbus RTU communication protocol

Load mode

< constant resistance >

< constant resistance >
< constant power >

Data monitoring

Three phase voltage, three-phase current, three-phase power, power factor, frequency and other parameters

Voltage resolution

≤1%F.S.

≤1%F.S.

Current resolution

≤1%F.S.

≤1%F.S.

Protection function

Short circuit protection of working power supply
Phase sequence protection of working power supply
Load overvoltage protection
Fan interlock protection
Fan fault protection
Overtemperature protection

Short circuit protection of working power supply
Phase sequence protection of working power supply
Load overvoltage protection
Fan interlock protection
Fan fault protection
Overtemperature protection
PLC fault protection
Instrument fault protection

Heat dissipation mode

Forced air cooling

Working power supply

AC 380V   50Hz

Installation mode

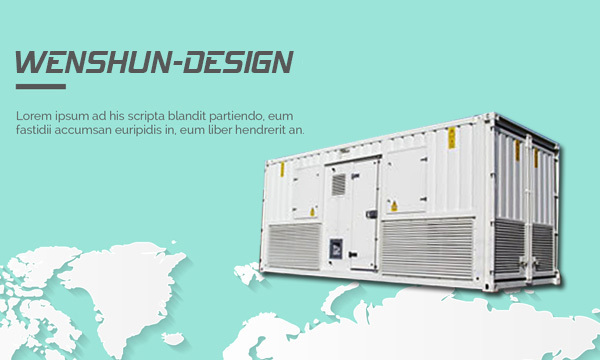

Outdoor, 20 foot container

Overall dimension

6058*2438*2591mm

Equipment weight

4T

Appearance color

Ral7032 light grey
